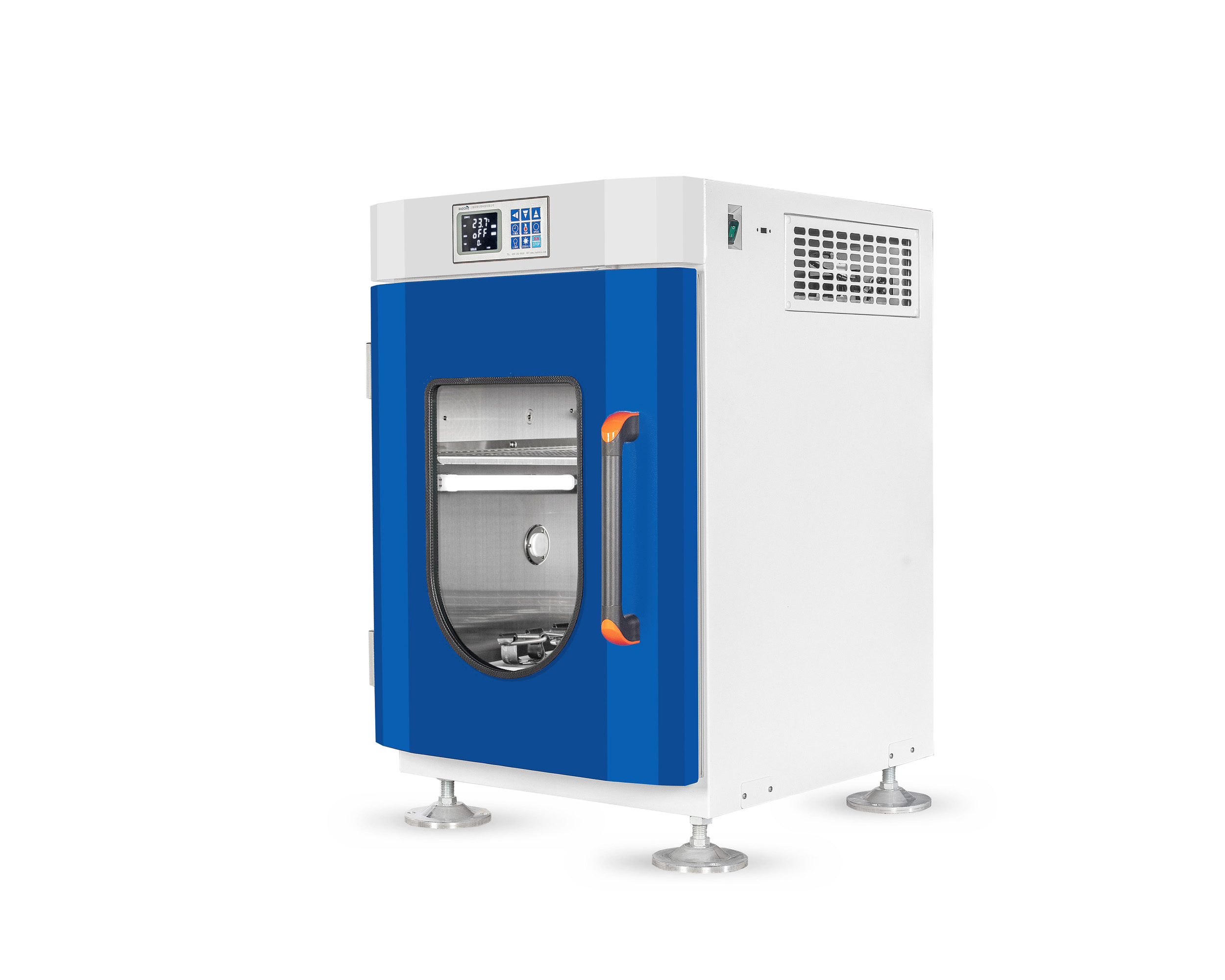

MS70 Incubator Shaker (Ishobora gushyirwa mu mwanya umwe, hamwe na UV Sterilization)
| Injangwe. Oya. | Izina ry'igicuruzwa | Umubare w'igice | Igipimo (Ubwinshi × Ubwinshi × Ubwinshi) |
| MS70 | Icupa ry'icyuma gishyushya icyuma gikoresha amashanyarazi ya UV Stackable Incubator | Igice 1 (Igice 1) | 550×653×850mm (Harimo urufatiro) |
| MS70-2 | Icupa ry'icyuma gishyushya imitsi rya UV (Units 2) | Seti 1 (Ibice 2) | 550×653×1660mm (Harimo urufatiro) |
| MS70-D2 | Icupa rya UV Stackable Incubator Shaker (Icyiciro cya Kabiri) | Igice 1 (Igice cya 2) | 550×653×810mm |
❏ Akantu koroshye ko gukoresha kanda buto hamwe n'ikimenyetso cya LCD kugira ngo byoroshye kandi bikore neza
▸ Akabuto ko kugenzura kanda kuri buto bituma byoroha kugenzura switch no guhindura agaciro kayo nta myitozo yihariye.
▸ Ishusho nziza cyane hamwe n'ahantu ho kwerekana ubushyuhe, umuvuduko n'igihe. Ukoresheje ecran yagutse ya digitale n'ibimenyetso bisobanutse neza kuri ecran, ushobora kureba kure cyane.
❏ Idirishya ry'umukara rinyerera, byoroshye gusunika no gukurura kugira ngo rikure neza (Ntabwo ari ngombwa)
▸ Ku bintu bishobora kwanduza imiterere y'ibinyabuzima cyangwa ibinyabuzima bishobora kwitabwaho hakoreshejwe idirishya ry'umukara rigenda rihindagurika, ibyo bikaba byabuza izuba (imirasire ya UV) kwinjira mu cyumba cyo gukinguriramo mu gihe bikomeza koroherwa no kureba imbere mu cyumba cyo gukinguriramo.
▸ Idirishya ry'umukara rigenda rishyirwa hagati y'idirishya ry'ikirahure n'igice cyo hanze cy'icyumba, bigatuma ryoroha kandi riryoshye, kandi rikaba igisubizo cyiza cyo kugabanya isoni zo gukanda icyuma gikozwe mu ibumba.
❏ Inzugi z'ibirahure bibiri zitanga uburinzi bwiza n'umutekano
▸ Inzugi z'ibirahuri by'umutekano bifite irangi ry'imbere n'iry'inyuma bifite ubushyuhe bwiza kandi birinda umutekano

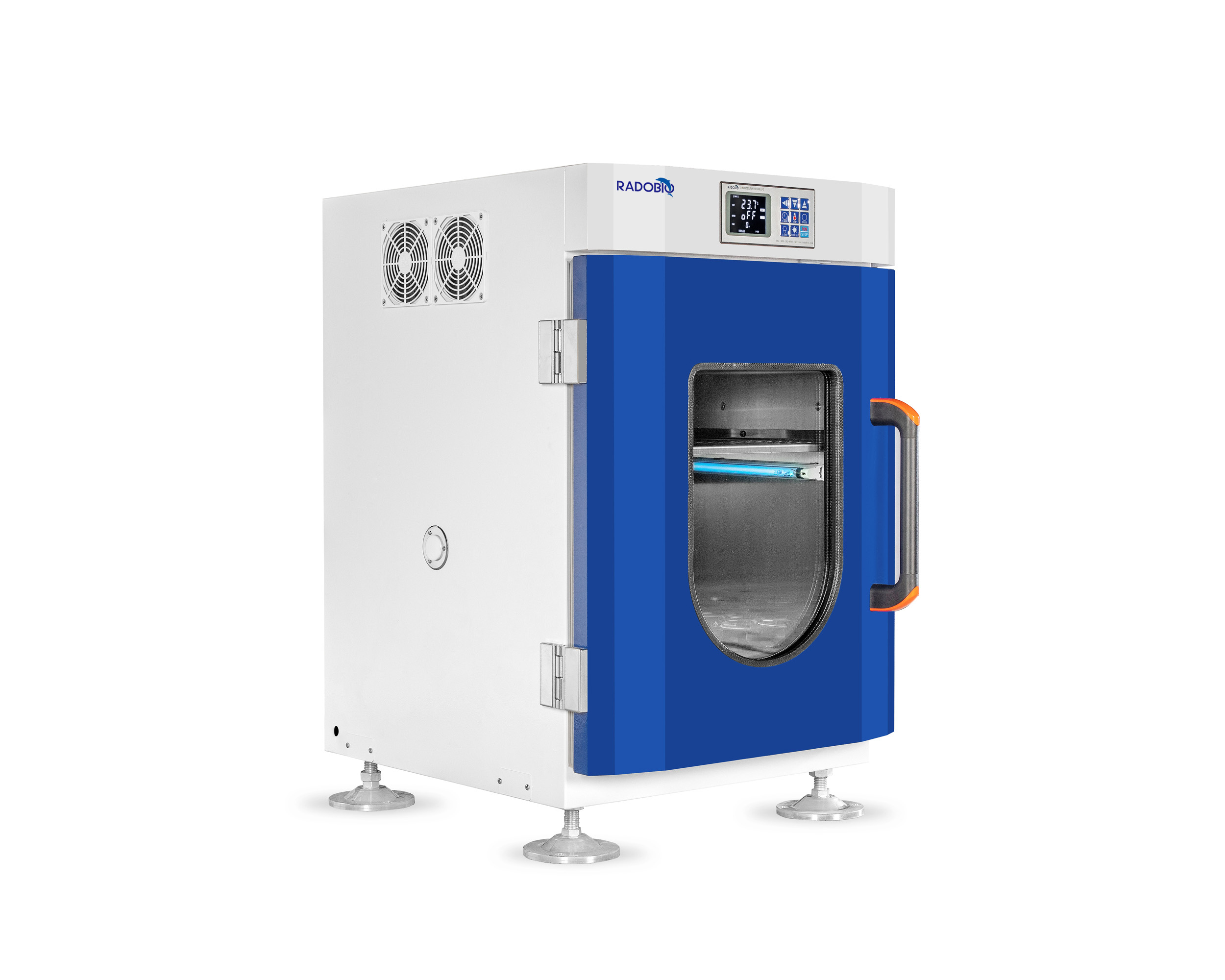

❏ Sisitemu yo gusukura UV kugira ngo irusheho gukora neza
▸ Igice cyo gukingira UV kugira ngo gikoreshwe neza, icyuma cyo gukingira UV gishobora gufungurwa mu gihe cyo kuruhuka kugira ngo ibidukikije bisukuye imbere mu cyumba
❏ Impande zuzuye z'icyuma kitagira umugese zikozwe mu buryo bwa brushed, nziza kandi yoroshye gusukura
▸ Igishushanyo mbonera cy'icyuma gikonjesha amazi, ibice byose by'amazi cyangwa ibihu birimo moteri zitwara amazi n'ibikoresho by'ikoranabuhanga bishyirwa hanze y'icyumba, bityo icyo gikoresho gikonjesha gishobora guhingwa ahantu hashyushye cyane n'ubushyuhe bwinshi.
▸ Gucika kw'amacupa mu gihe cyo kuyashyira mu cyuma ntibizangiza icyuma gishyushya, kandi hasi mu cyuma gishyushya bishobora gusukurwa n'amazi cyangwa bigasukurwa neza hakoreshejwe imashini zisukura n'izivura kugira ngo ibidukikije bisukuye biri mu cyuma gishyushya.
❏ Imikorere y'imashini iracecetse cyane, ikora mu buryo bwihuse cyane kandi nta gutigita kudasanzwe
▸ Itangiriro rihamye rifite ikoranabuhanga ridasanzwe ryo gutwara ibintu, imikorere hafi ya yose nta rusaku, nta guhindagura kudasanzwe nubwo haba hari ibice byinshi by'imashini bishyizwe hamwe.
▸ Imikorere ihamye y'imashini kandi ikaba imara igihe kirekire
❏ Agakoresho ko gupfunyika agace kamwe karahamye kandi karakomeye, karinda ingaruka mbi zishobora guterwa no kwangirika kw'agakoresho
▸ Udukingirizo twose twa RADOBIO ducibwa mu cyuma kimwe cya 304 cy’icyuma kidashonga, gihamye kandi kiramba kandi ntikizangirika, bikarinda ingaruka mbi nko kwangirika kw’icupa.
▸ Udukingirizo tw'icyuma kitagira umugese dufunze neza kugira ngo wirinde gucika ku muntu ukoresha, mu gihe bigabanya gukururana hagati y'icupa n'agakingirizo, bigatuma habaho uburambe bwiza bwo guceceka.
▸ Ibikoresho bitandukanye byo mu bwato bwo gukamura ibidukikije bishobora guhindurwa
❏ Umushyushya utagira amazi udafite ubushyuhe, bigabanya cyane ubushyuhe bw'inyuma kandi bikagabanya ingufu
▸ Ugereranyije n'abafana basanzwe, abafana badashyuha bashobora gutanga ubushyuhe bumwe kandi buhamye mu cyumba, mu gihe bagabanya ubushyuhe bw'inyuma kandi bagatanga ubushyuhe bwinshi bwo gushyiramo umwuka udakoresheje sisitemu yo gukonjesha, ibyo bikaba binagabanya ingufu.

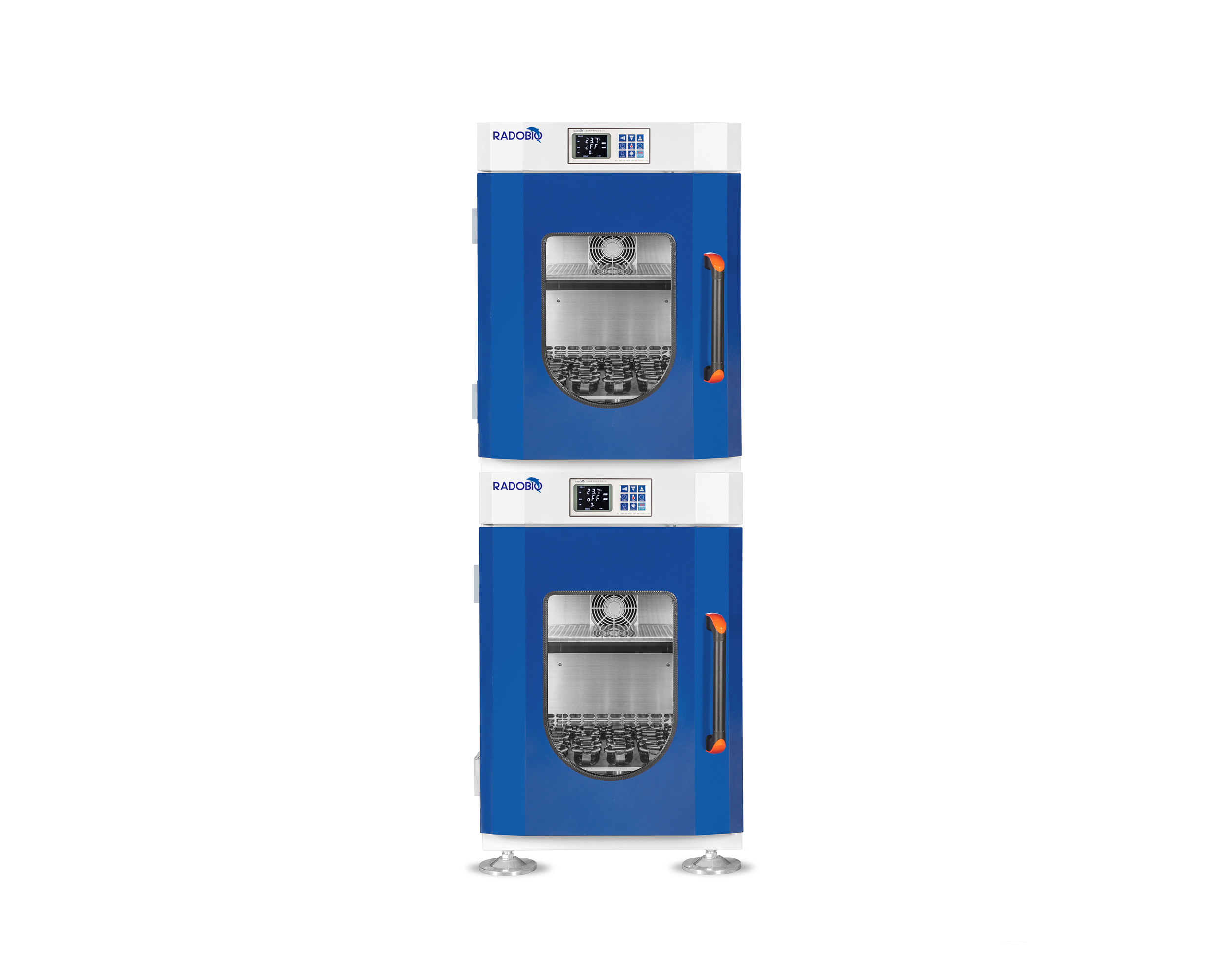

❏ Gushyira ahantu hakonje, hashobora gukubitwa, kandi bigira ingaruka nziza mu kuzigama umwanya wa laboratwari
▸ Ishobora gukoreshwa hasi cyangwa ku gitereko cyo hasi mu gikoresho kimwe, cyangwa igashyirwa mu gikoresho cy’abantu babiri kugira ngo byorohe kuyikoresha n’abakozi ba laboratwari.
▸ Hatabayeho umwanya w'inyongera wo hasi, icyuma gishyushya gishobora gushyirwamo ibice 2 uko umusaruro w'ibikoresho wiyongera. Buri mashini ishyushya mu gice ikora ku giti cyayo, itanga uburyo butandukanye bwo gushyushya.
❏ Igishushanyo cy'umutekano mwinshi ku mukozi n'ingero z'umutekano
▸ Imiterere ya PID yakozwe neza idatera ubushyuhe kwiyongera cyane mu gihe cy'izamuka n'igabanuka ry'ubushyuhe
▸ Sisitemu yo kuzunguruka yuzuye hamwe na sisitemu yo kuringaniza kugira ngo hatabaho izindi mvururu zidakenewe mu gihe cyo kuzunguruka kw'umuvuduko mwinshi.
▸ Nyuma y'impanuka y'amashanyarazi, icyuma gishyushya kizibuka imikoreshereze y'umukoresha maze kigatangira mu buryo bwikora hakurikijwe imikoreshereze y'umwimerere igihe umuriro ugarutse, kandi kikamenyesha umukoresha impanuka yabaye mu buryo bwikora.
▸ Iyo umukoresha afunguye umugozi mu gihe cyo gukora, icyuma gihindura icyuma gihindura icyuma kizimya feri mu buryo bworoshye kugeza igihe gihagaze burundu, kandi iyo icyuma gifunze, icyuma gihindura icyuma gihindura icyuma kizimya icyuma kizimya icyuma mu buryo bworoshye kugeza kigeze ku muvuduko wagenwe, bityo nta kintu kibi kizabaho bitewe no kwiyongera k'umuvuduko mu buryo butunguranye.
▸ Iyo parametero itandukaniye kure n'agaciro kagenwe, sisitemu y'amajwi n'urumuri ihita ifunguka
| Igikoresho cyo gushyushya ibikoresho byo mu nzu | 1 |
| Isahani | 1 |
| Fuse | 2 |
| Umugozi w'amashanyarazi | 1 |
| Igitabo cy'ibicuruzwa, Raporo y'ibizamini, n'ibindi. | 1 |
| Injangwe. Oya. | MS70 |
| Ingano | Igipimo 1 |
| Igenzura ry'igenzura | Akadomo ko gukora kanda kuri buto |
| Umuvuduko wo kuzenguruka | 2 ~ 300rpm bitewe n'umutwaro n'uburyo ushyirwamo |
| Uburyo bwo kugenzura umuvuduko buteye neza | 1pm |
| Guterana mu buryo butiza umuvuduko | 26mm (Guhindura ibintu birahari) |
| Ingendo yo kunyeganyega | Inzira y'ikirere |
| Uburyo bwo kugenzura ubushyuhe | Uburyo bwo kugenzura PID |
| Ingano yo kugenzura ubushyuhe | 4~60°C |
| Ubushobozi bwo kwerekana ubushyuhe | 0.1°C |
| Ikwirakwizwa ry'ubushyuhe | ± 0.5°C kuri 37°C |
| Ihame ry'igenzura ry'ubushyuhe | Pt-100 |
| Ikoreshwa ry'ingufu ntarengwa. | 1000W |
| Igihe | 0~999h |
| Ingano y'agasanduku | 370×400mm |
| Uburebure ntarengwa bwo gukora | 400mm (igice kimwe) |
| Ipakiye ntarengwa. | 15kg |
| Ifuru yo gutigisa ifite ubushobozi bwo gushyiramo agasanduku | 16×250ml cyangwa 11×500ml cyangwa 7×1000ml cyangwa 5×2000ml (hari uburyo bwo gupfunyika amacupa, imiyoboro y'amazi, amasoko y'amazi avanze, n'ibindi bikoresho byo gufata) |
| Kwaguka ntarengwa | Ishobora gushyirwa hamwe kugeza kuri 2 |
| Igipimo (Ubwinshi × Ubwinshi × Ubwinshi) | 550×653×850mm (igice 1); 550×653×1660mm (igice 2) |
| Igipimo cy'imbere (W×D×H) | 460×562×495mm |
| Ingano | 70L |
| Uburyo bwo gufunga umubiri | Gusukura imirasire ya UV |
| Ubushyuhe buri hagati y'ikirere | 5~35°C |
| Ingufu z'amashanyarazi | 115/230V±10%, 50/60Hz |
| Uburemere | 113kg kuri buri gipimo |
| Icyumba cyo gukubikiramo ibikoresho | Icyuma kidasembuye |
| Icyumba cyo hanze cy'ibikoresho | Icyuma gishushanyijeho irangi |
| Ikintu cy'ubushake | Idirishya ry'umukara rigenda rinyerera |
*Ibicuruzwa byose bigeragezwa ahantu hagenzurwa mu buryo bwa RADOBIO. Ntitwemeza ko ibisubizo bihoraho iyo bipimwe mu bihe bitandukanye.
| Injangwe. Oya. | Izina ry'igicuruzwa | Ibipimo byo kohereza Ubugari×Ubwinshi×Ubwinshi (mm) | Uburemere bwo kohereza (kg) |
| MS70 | Icupa ry'ingufu rishobora gufatirwa hamwe | 650×800×1040 | 135 |

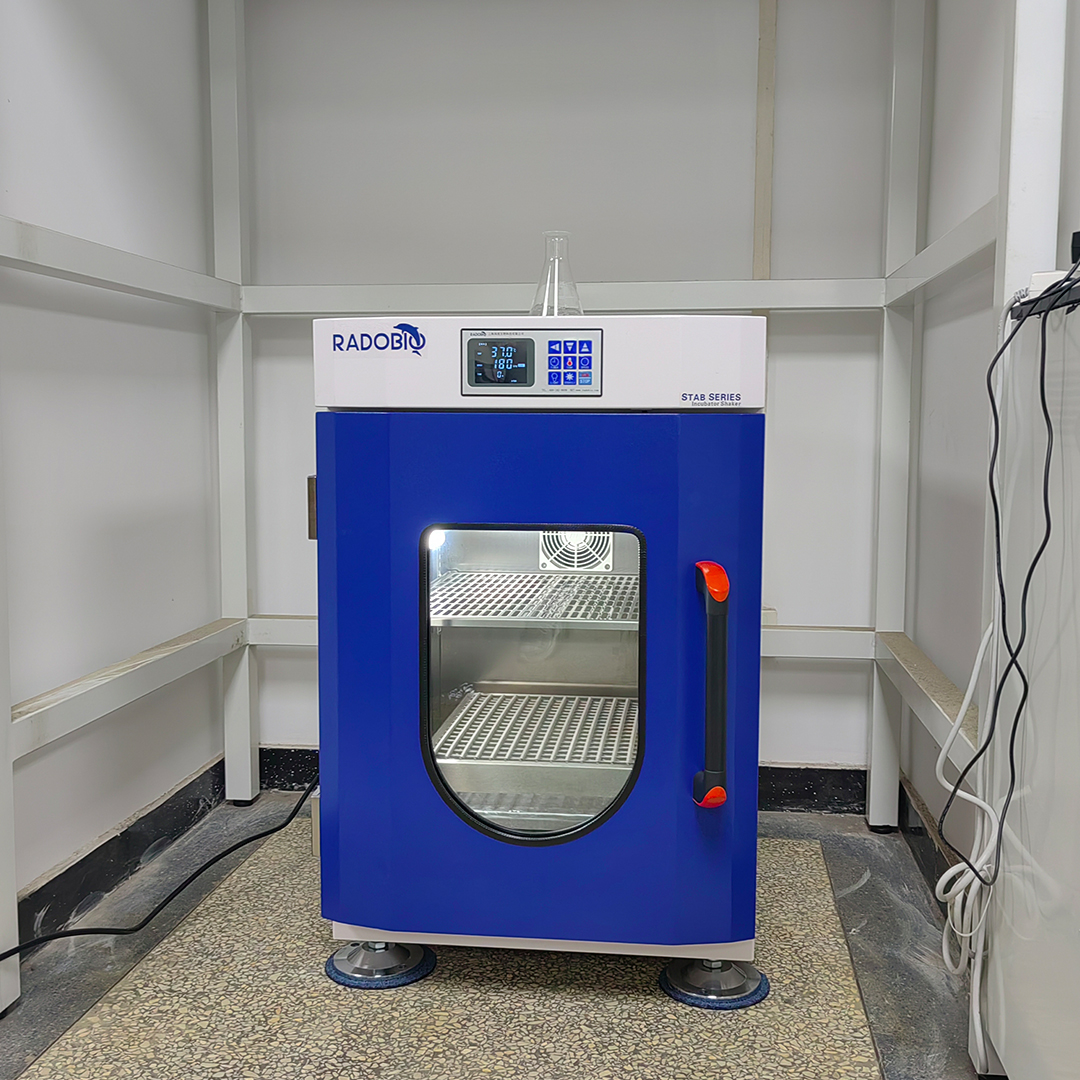

♦ Kongera Ubushakashatsi ku Ihumana ry'Ibiyaga hifashishijwe MS70 muri CRAES
Mu Ishuri Rikuru ry’Ubushakashatsi ry’Ubukungu bw’Abashinwa (CRAES), MS70 Incubator Shaker yacu igira uruhare runini muri Laboratwari y’Igihugu y’Ubwubatsi yo Kurwanya Ihumana ry’Ibiyaga no Kugarura Imyuka. Abashakashatsi bo muri CRAES bibanda ku kugarura uburinganire bw’ibidukikije mu biyaga by’amazi meza byo mu Bushinwa, biga ingaruka za azote na fosifore ku bwiza bw’amazi n’urusobe rw’ibinyabuzima biyikikije. MS70 icubator ni ingenzi mu guhinga udukoko dukoreshwa mu bushakashatsi bugamije kugabanya imyanda no kunoza ubwiza bw’amazi. Hamwe no kugenzura ibidukikije neza haba ku miterere ihindagurika ndetse no ku buryo idahinduka, iha ubushobozi bwo gukura neza ku miterere ihamye y’udukoko twibasira imyuka ihumanya. Ubuhanga bwa MS70 bushyigikira iterambere ry’uburyo bushya bwo kuvugurura, bufasha CRAES gukemura ibibazo bikomeye byo kugarura urusobe rw’ibinyabuzima, kugenzura ihumana ry’ibiyaga, no gucunga umutungo kamere w’amazi mu buryo burambye. Imikorere yayo yizewe yongera umusaruro w’ubushakashatsi butanga umusanzu mu kubungabunga ibidukikije.

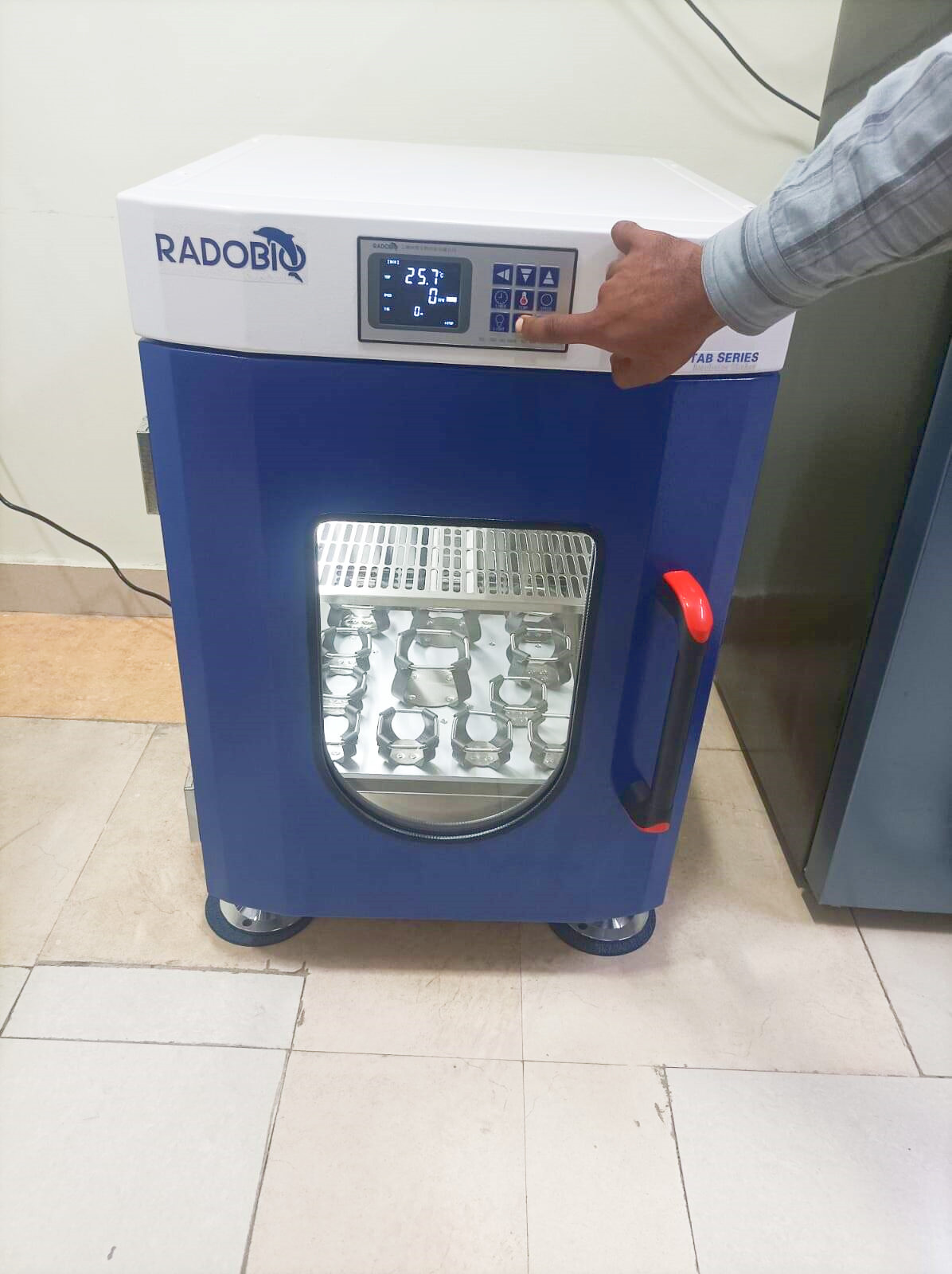

♦ Guteza imbere inyigo za biochemical mu Ishuri Rikuru ry’Ikoranabuhanga ry’Abahinde (IIT)
Ikigo cy’Ubuhinde gishinzwe Ikoranabuhanga (IIT) gikoresha MS70 Incubator Shaker mu bushakashatsi buhanitse ku nzira za mikorobe n’ingamba zo kuvugurura ibidukikije. Abashakashatsi ba IIT biyemeje gukemura ibibazo bikomeye bifitanye isano n’ibidukikije, nko kuvura imyanda iva mu nganda, biga ingaruka za mikorobe n’uruhare rwazo mu kwangiza imyanda. Uburyo buboneye bwo kugenzura ubushyuhe n’imitingito ya MS70 ni ingenzi mu kubungabunga imiterere myiza y’imikorobe itandukanye ikoreshwa mu mishinga yo gutunganya imyanda. Binyuze mu gukoresha imihindagurikire y’ikirere n’imitako ihoraho, MS70 itanga uburyo bworoshye bwo gushushanya, ikemerera abashakashatsi kwigana imiterere itandukanye y’ibidukikije. Kwizerwa kwa mashini ifungura imyanda bishyigikira imbaraga z’ikigo zikomeje mu guteza imbere ibisubizo birambye byo gucunga imyanda. Byongeye kandi, igishushanyo cyayo gituma habaho igeragezwa ryiza ry’ubwoko butandukanye bwa mikorobe, birushaho kunoza inyigo y’imikoranire ya mikorobe mu gutunganya imyanda. Ubushakashatsi bwa IIT bufasha gushyiraho uburyo bworohereza ibidukikije kandi buhendutse bwo kugabanya ihumana ry’inganda.

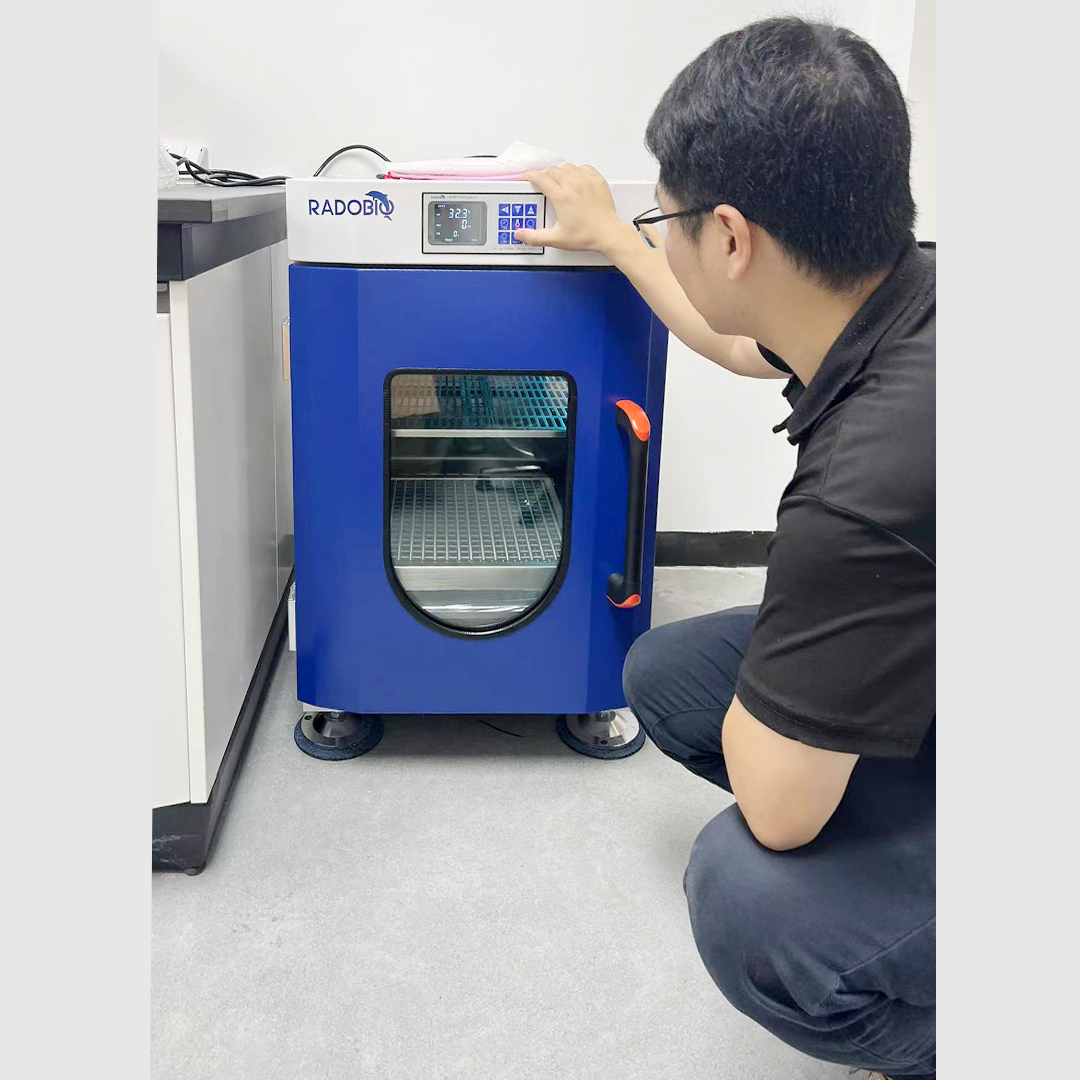

♦ Gushyigikira Ubushakashatsi ku mikorobe zo mu mazi mu Kigo cy’Ubushakashatsi ku Burobyi bwo mu Nyanja y’Amajyepfo y’Ubushinwa
Mu kigo cy’ubushakashatsi ku burobyi mu nyanja y’ubushinwa, MS70 yacu ni ingenzi cyane mu guteza imbere udukoko two mu mazi mu bushakashatsi ku bworozi bw’amafi burambye. Laboratwari yiyemeje kunoza ubuzima bw’amafi binyuze mu gukoresha probiotics, kwiga uburyo mikorobe zigira ingaruka ku mikorere y’intungamubiri no kwangirika kw’imyanda mu bidukikije byo mu mazi. MS70 itanga imiterere nyayo y’ibidukikije haba ku miterere y’udukoko duhindagurika ndetse no ku buryo tudahinduka, igenzura ko ibisubizo by’igerageza bihamye kandi bihoraho. Abashakashatsi bo muri icyo kigo bakoresha incubator kugira ngo basuzume uruhare rw’udukoko mu guteza imbere ubworozi bw’amafi burambye, bibanda kuri probiotics yongera ubudahangarwa bw’amafi kandi ikagabanya gukenera antibiyotike. Mu gutuma ibidukikije bihora bihindagurika, MS70 inashyigikira inyigo ku kwangirika kw’imyanda yo mu mazi, ifasha guteza imbere iterambere ry’ubworozi bw’amafi butangiza ibidukikije. Ubushobozi bwayo bwo gukoresha kabiri butuma iba igikoresho cy’ingenzi mu guteza imbere ubumenyi bw’amafi no guteza imbere uburobyi burambye mu karere.
