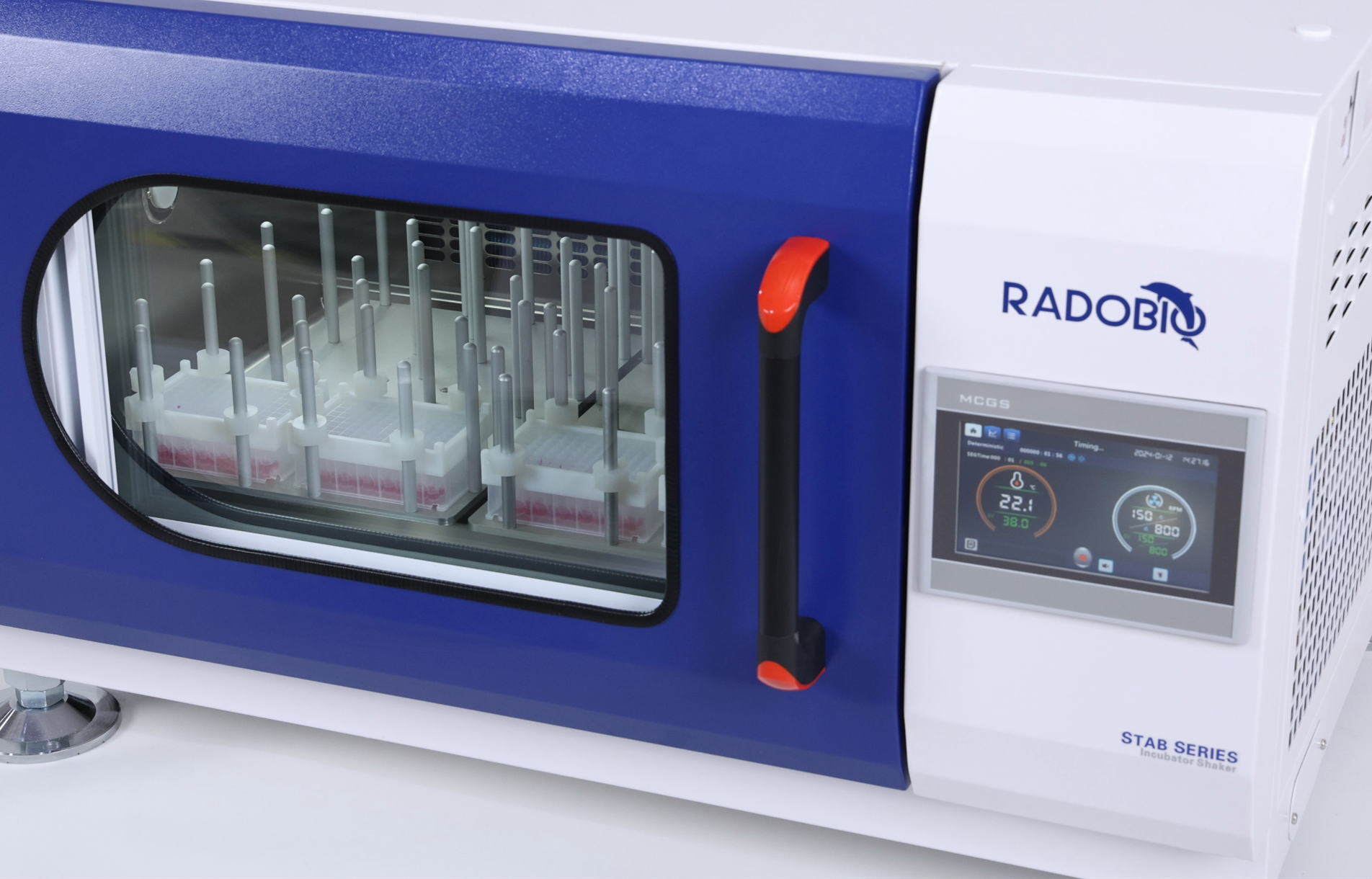

MS160HS Stackable High Speed Incubator Shaker
Download :
-
High Speed Shaking
◆The shaking throw is 3mm,max rotation speed of the shaker is 1000rpm. It’s suitable for high throughput deep-well plate culture, it can cultivate thousands of biologocal sample at a time. Data Management
◆4.3 inch LED touch operation screen, intuitive control and easy to operate. ◆Historical data can be viewed in real time,and can be exported by the USB interface. Magic Space
◆Deep-well plate holders can hold two deck deep-well plates. ◆It runs near silent, and can be stacked to 3 units without any abnormality, effectively saving space.
Hygiene◆304 frosted stainless steel arc angle integrated inner cavity, beautiful and easy to clean ◆Waterproof design and easy-to-clean interior with rounded corners ◆UV sterilization system, better sterilization effect. ◆Deep-well plate holders is stable and durable, effectively preventing unsafe incidents Temperature and CO2 Regulation
◆Double glass door ensures excellent thermal insulation and safety ◆Circulating airflow technology ensures high consistency of culture conditions in the chamber Alarm
◆After stable operation, if the temperature fluctuation exceeds the set value plus or minus overtemperature alarm deviation, audible alarm activates ◆Audible alarm activates if outer door is opened over 1 minute
Incubator Shaker | 1 |
Tray with Deep-well Plate Holders | 1 |
Fuse | 2 |
Power Cord | 1 |
Product Manual, Test Report, etc. | 1 |
Model | MS160HS |
Interface | 4.3 inch LED touch operation screen |
Rotation speed | 30~1000rpm depending on load and stacking |
Speed control accuracy | 1rpm |
Shaking throw | 3mm |
Temperature control mode | PID control mode |
Temperature | 4°C~60°C |
Temperature display resolution | 0.1°C |
Temperature fluctuation | ±0.1°C |
Temperature field uniformity | ±0.5°C @37°C |
Power of heating | 550W |
Power of cooling | 250W |
Tray size | 510 x 410mm |
Maximum load | 35kgs |
Tray capacity of deep-well plates | 32pcs |
Timing function | 0-999.9hours |
Maximum expansion | Up to 3 units can be stacked |
Dimension (W x D x H) | L1000 x W720 x H615mm (one unit); L1000 x W720 x H1220mm (two units); L1000 x W720 x H1825mm (three units) |
Volume | 160L |
Illumination | FI tube,30W |
Sterilization | UV sterilization |
Push-pull curtain | build-in |
Ambient temperature | 5°C~ 35°C |
Power supply | 115V~230V±10%, 50~60Hz |
Weight | 145kgs per unit |
Item No. | Product Name | Shipping dimensions W x H x D (mm) |
Shipping weight (kg) |
MS160HS | Stackable High Speed Incubator Shaker | 1100×820×710 | 160 |
