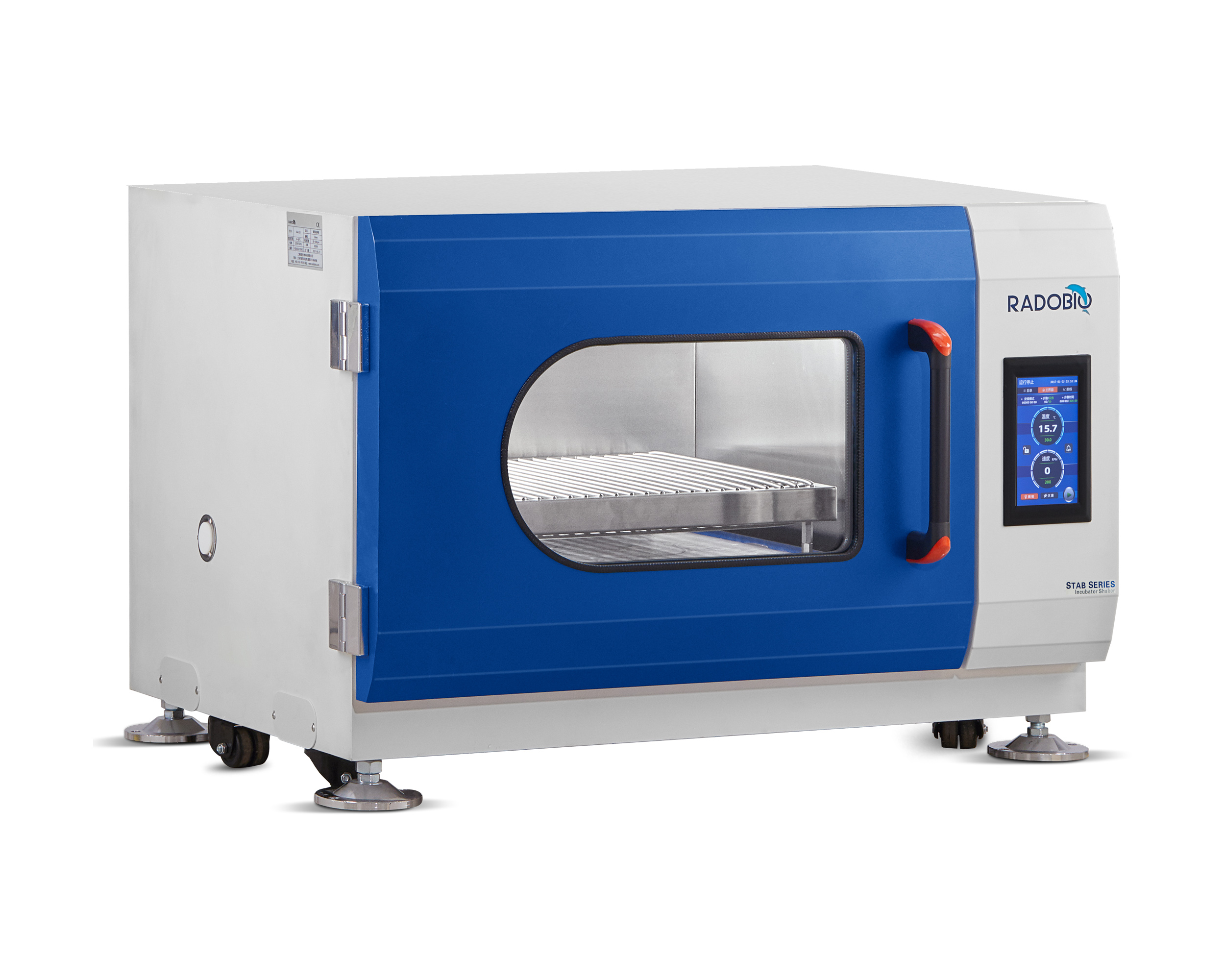

MS160T UV Sterilization Stackable Incubator Shaker

short description:


For shaking culture of microorganism ,  it’s UV sterilization stackable incubator shaker.

Product Detail


Product Tags


Cat. No. Product name Number of unit Dimension(W×D×H)
MS160T UV Sterilization Stackable Incubator Shaker 1 Unit(1 Unit) 1000×725×620mm     (Base included)
MS160T-2 UV Sterilization Stackable Incubator Shaker (2 Units) 1 Set(2 Units) 1000×725×1170mm    (Base included)
MS160T-3 UV Sterilization Stackable Incubator Shaker (3 Units) 1 Set(3 Units) 1000×725×1720mm   (Base included)
MS160T-D2 UV Sterilization Stackable Incubator Shaker (The Second Unit) 1 Unit(2nd Unit) 1000×725×550mm
MS160T-D3 UV Sterilization Stackable Incubator Shaker (The Third Unit) 1 Unit(3rd Unit) 1000×725×550mm

Key Features:

❏ 7-inch LCD touch panel controller, intuitive control and easy operation
▸ 7-inch touch screen control panel is intuitive and easy to operate, so you can easily control the switch of a parameter and change its value without special training
▸ 30-stage program can be set up to set different temperature, speed, time and other culture parameters, and the program can be automatically and seamlessly switched between; any parameters and historical data curve of the culture process can be viewed at any time

❏ Sliding black window, easy to push and pull for dark culture (Optional)
▸ For photosensitive media or organisms, culture can be performed by pulling up the sliding black window, which can prevents sunlight (UV radiation) from entering the interior of the incubator while retaining the convenience of viewing the interior of the incubator
▸ The sliding black window is positioned between the glass window and the outer chamber panel, making it convenient and aesthetically pleasing, and a perfect solution to the embarrassment of taping tin foil

❏ Double glass doors ensure excellent insulation and security
▸ Internal and external double glazed safety glass doors with excellent thermal insulation and safety protection

❏ Door heating function effectively prevents fogging of the glass door to observe cell culture at all times (Optional)
▸ Door heating function effectively prevents condensation on the glass window, allowing good observation of the internal shake flasks even when the temperature difference between the inside and outside of the shaker is large

❏ UV sterilization system for better sterilization effect
▸ UV sterilization unit for effective sterilization, UV sterilization unit can be opened during rest time to ensure a clean culture environment inside the chamber

❏ Brushed full stainless steel rounded corners of the integrated cavity, beautiful and easy to clean
▸ Waterproof design of the incubator body, all water or mist-sensitive components including drive motors and electronic components are placed outside the chamber, so the incubator can be cultivated in high temperature and high humidity environment
▸ Any accidental breakage of bottles during incubation will not damage the incubator, and the bottom of the incubator can be cleaned directly with water or thoroughly cleaned with cleaners and sterilizers to ensure a sterile environment inside the incubator

❏ Machine operation is nearly silent, multi-unit stacked high-speed operation without abnormal vibration
▸ Stable start-up with unique bearing technology, almost noiseless operation, no abnormal vibration even when multiple layers are stacked
▸ Stable machine operation and longer service life

❏ One-piece molding flask clamp is stable and durable, effectively preventing unsafe incidents due to clamp breakage
▸ All of RADOBIO's flask clamps are cut directly from a single piece of 304 stainless steel, which is stable and durable and will not break, effectively preventing unsafe incidents such as flask breakage
▸ The stainless steel clamps are plastic sealed to prevent cuts to the user, while reducing friction between the flask and the clamp, bringing a better silent experience
▸ Various culture vessel fixtures can be customized

❏ Waterproof fan without heat, significantly reducing background heat and saving energy
▸ Compared with conventional fans, heatless waterproof fans can provide a more uniform and stable temperature in the chamber, while effectively reducing background heat and providing a wider range of incubation temperatures without activating the refrigeration system, which also saves energy

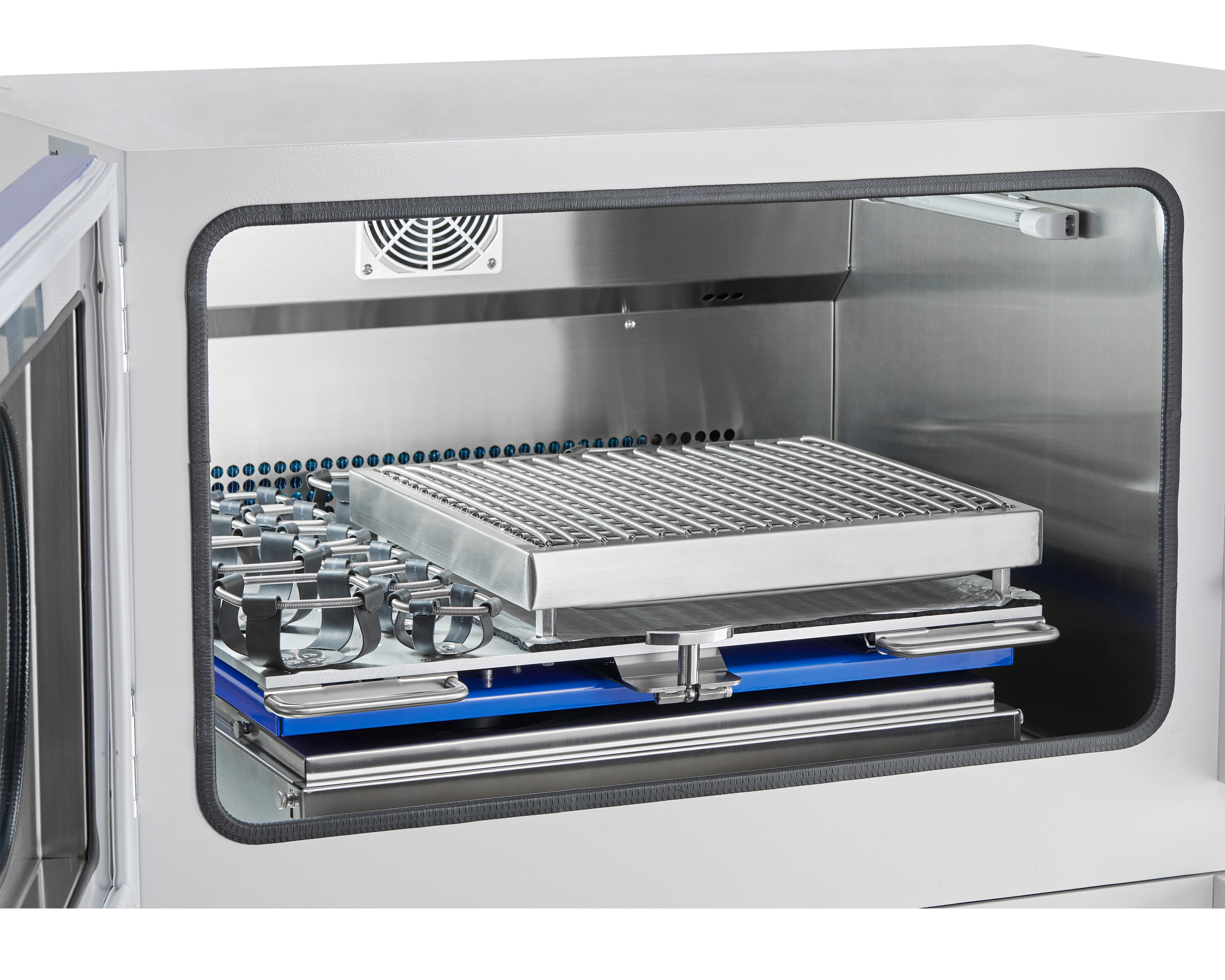

❏ 8mm aluminum alloy sliding tray for easy placement of culture flasks
▸ 8mm thick aluminum alloy sliding tray is lighter and stronger, never deforms and is easy to clean
▸ Push-pull design allows for easy placement of culture flasks at specific heights and spaces

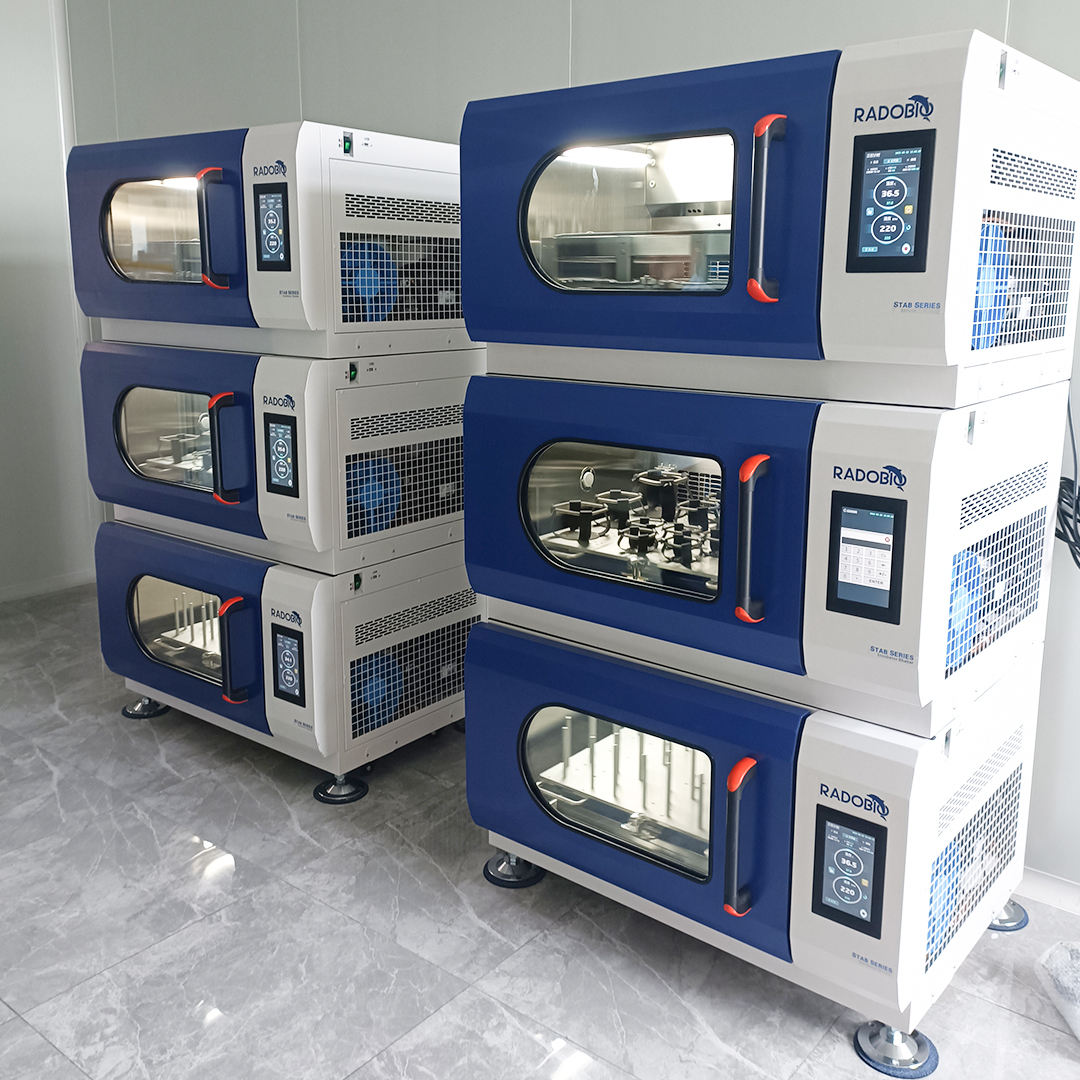

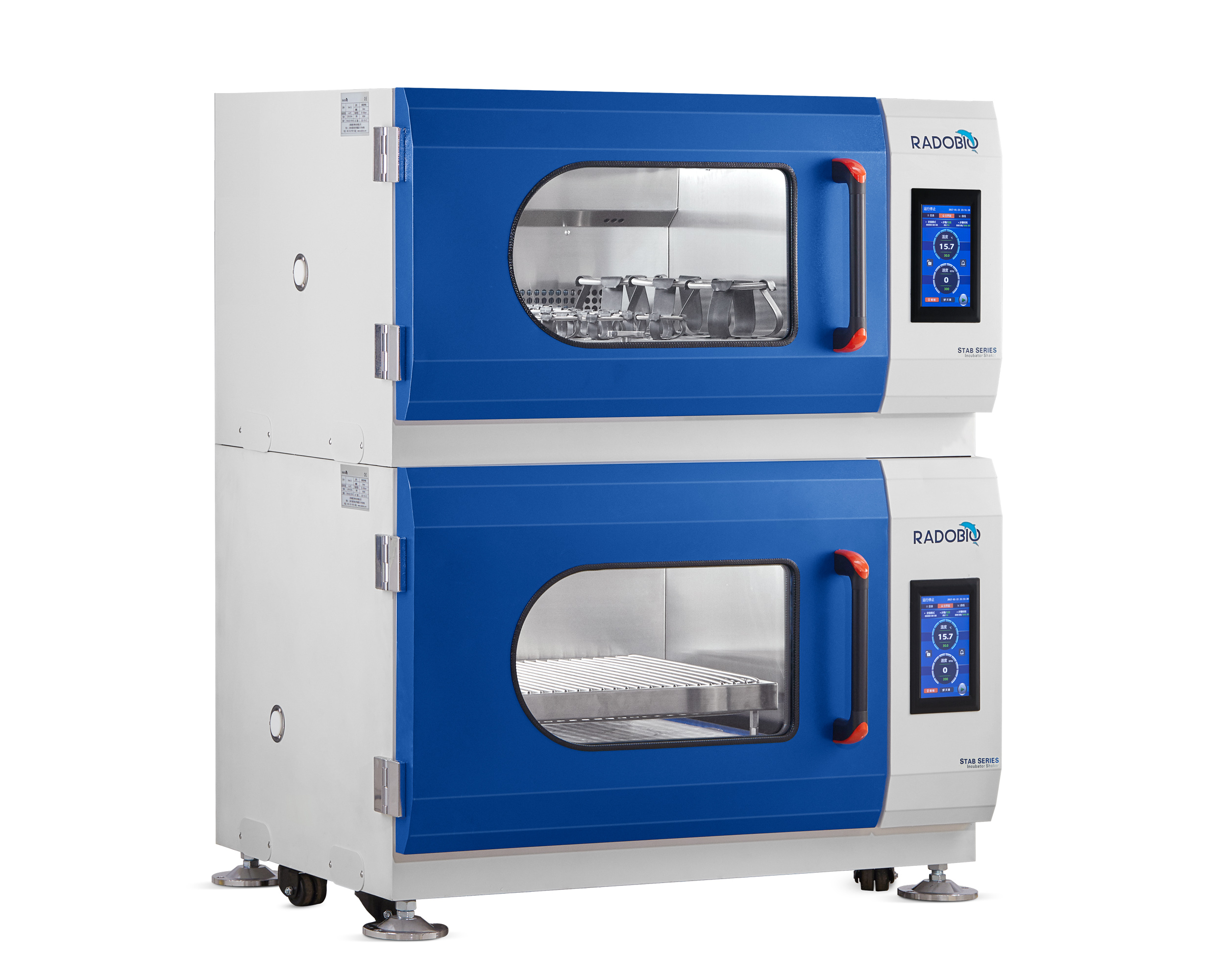

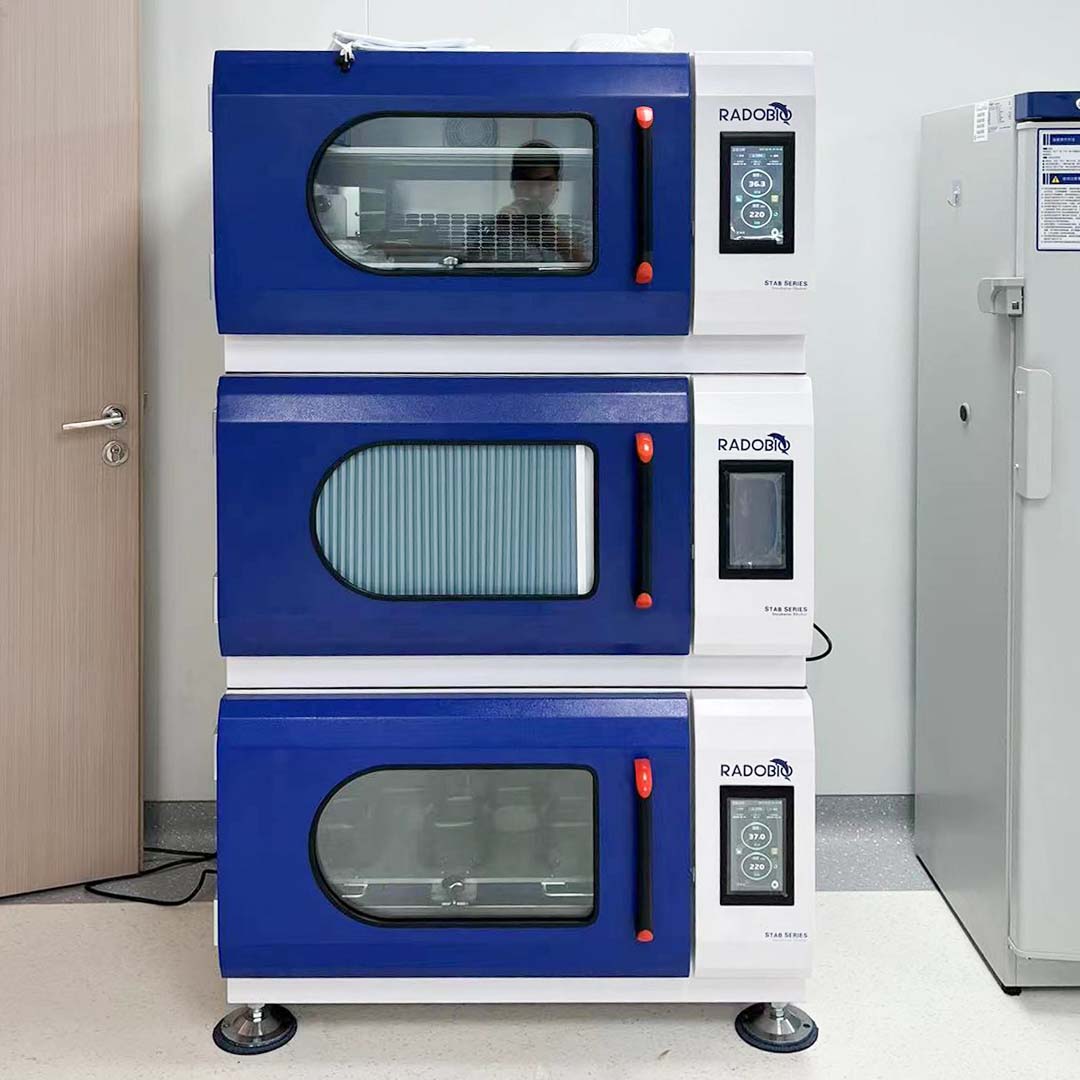

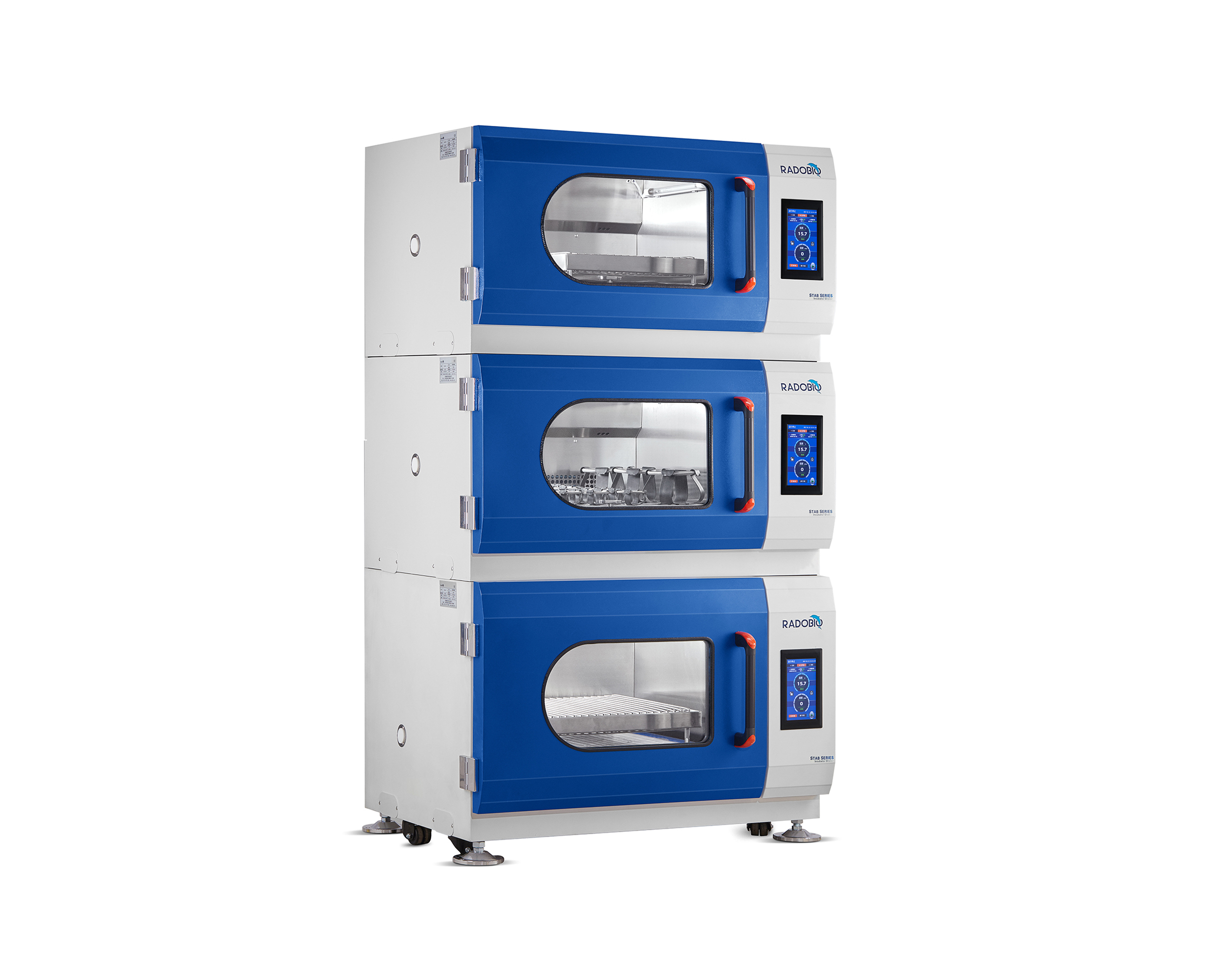

❏ Flexible placement, stackable, effective in saving lab space
▸ Can be used on the floor or on the floor stand in a single unit, or stacked in a double units for easy operation by laboratory personnel
▸ Without taking up additional floor space, the shaker can be stacked up to 3 units as the culture throughput increases Each incubator shaker in the stack operates independently, providing different incubation conditions

❏ Multi-safety design for operator and sample safety
▸ Optimized PID parameter settings that do not cause temperature overshoot during temperature rise and fall
▸ Fully optimized oscillation system and balancing system to ensure that no other unwanted vibrations occur during high speed oscillation
▸ After an accidental power failure, the shaker will remember the user's settings and automatically start up according to the original settings when the power comes back on, and automatically alert the operator of the accident that has occurred
▸ If the user opens the hatch during operation, the shaker oscillating plate will automatically brake flexibly until it stops oscillating completely, and when the hatch is closed, the shaker oscillating plate will automatically start flexibly until it reaches the preset oscillating speed, so there will be no unsafe events caused by sudden speed increase.
▸ When a parameter deviates far from the set value, the sound and light alarm system is automatically turned on
▸ Touch screen control panel with data export USB port on the side for easy export of backup data and convenient and safe data storage

Configuration List:

Incubator Shaker 1
Tray with Holder 1
Fuse 2
Power Cord 1
Product Manual, Test Report, etc. 1

 Technical Details

Cat.No. MS160T
Quantity 1 unit
Control interface 7.0 inch LED touch operation screen
Rotation speed 2~300rpm depending on load and stacking
Speed control accuracy 1rpm
Shaking throw 26mm (Customization is available)
Shaking motion Orbital
Temperature control mode PID control mode
Temperature control range 4~60°C
Temperature display resolution 0.1°C
Temperature distribution ±0.5°C at 37°C
Principle of temp. sensor Pt-100
Power consumption max. 1300W
Timer 0~999h
Tray size 590×465mm
Maximum working height 340mm (one unit)
Loading max. 35kg
Tray capacity of shake flask 35×250ml or 24×500ml or 15×1000ml or 8×2000ml (standard with flask clamps, Various other holders are available)
Maximum expansion Stackable up to 3 units
Dimension (W×D×H) 1000×725×620mm (1 unit); 1000×725×1170mm (2 units); 1000×725×1720mm (3 units)
Internal dimension (W×D×H) 720×632×475mm
Volume 160L
Sterilization method UV sterilization
Number of settable programs 5
Number of stages per program 30
Data export interface USB interface
Historical data storage 250,000 messages
Ambient temperature 5~35°C
Power supply 115/230V±10%, 50/60Hz
Weight 155kg per unit
Material incubation chamber Stainless steel
Material outer chamber Painted steel
Optional item Sliding black window; Door heating function

*All products are tested in controlled environments in the manner of RADOBIO. We do not guarantee consistent results when tested under different conditions.

Shipping Information

Cat. No. Product name Shipping dimensions
W×D×H (mm)
Shipping weight (kg)
MS160T Stackable Incubator Shaker 1080×855×775 185

  • Previous:
  • Next:

  • Spring Steel Wire Mesh

    spring steel wire mesh

    Cat. No. Description Number of spring steel wird mesh
    RF2100 Spring Steel Wire Mesh (590×465mm) 1


    Flask Clamps

    flask clamp

    Cat. No. Description Number of flask clamps
    RF125 125mL Flask Clamp (diameter 70mm) 50
    RF250 250mL Flask Clamp (diameter 83mm) 35
    RF500 500mL Flask Clamp (diameter 105mm) 24
    RF1000 1000mL Flask Clamp (diameter 130mm) 15
    RF2000 2000mL Flask Clamp (diameter 165mm) 8


    Test Tube Racks

    test tube rack

    Cat. No. Description Number of test tube racks
    RF23W Test Tube Rack (50mL×15& 15mL×28, dimension 423×130×90mm,diameter 30/17mm) 3
    RF24W Test Tube Rack (50mL×60, dimension 373×130×90mm,diameter 17mm) 3
    RF25W Test Tube Rack (50mL×15, dimension 423×130×90mm,diameter 30mm) 3
